enabling fast fingerprint authentication less than 1.5 seconds.
What makes D4 stands out is that the terminal can be Wi-Fi networked via Bluetooth and integrate with ZKBio Zlink. This lets users manage employees and equipment, set attendance rules and check real-time attendance reports on their desktop or mobile device.
| Model | D4 |
| Display | 2.8"@ TFT Color LCD Screen (320 x 240) |
| Operation System | Linux |
| Hardware | CPU: Dual Core@240MHz RAM: 8MB; ROM: 16MB Speaker: 8ohm @1W Fingerprint Sensor: ZK Optical Sensor Casing Color: White |
| Authentication method | Fingerprint / Card (Optional) |
| Fingerprint Template Capacity | 500 (1: N) (Standard) |
| Card Capacity | 500 (1: N) (Optional) |
| User Capacity | 500 (1: N) (Standard) |
| Transaction Capacity | 50,000 (1: N) |
| Biometric Authentication Speed | less than 1.5 sec (Fingerprint) |
| False Acceptance Rate (FAR) % | FAR < 0.0001% (Fingerprint) |
| False Rejection Rate (FRR) % | FRR < 0.1% (Fingerprint) |
| Biometric Algorithm | ZKFingerprint V13.0 |
| Card Type | ID Card@ 125 kHz IC Card@ 13.56 MHz (Optional) |
| Communication | Wi-Fi (IEEE802.11 b/g/n) @ 2.4 GHz Bluetooth 5.0 |
| Standard Functions | DST, Up to 14-digit User ID, Multiple Authentication Methods, Online Firmware Upgrade |
| Power Supply | DC 5V 2A (Type-C USB) |
| Operating Temperature | -5°C to 45°C |
| Operating Humidity | 10% to 90% RH (Non-condensing) |
| Dimensions | 143.5mm* 96.5mm* 73.3 mm (L*W*H) |
| Gross Weight | 0.40 Kg |
| Net Weight | 0.19 Kg |
| Supported Software | Mobile App: ZKBio Zlink Cloud-based Software: ZKBio Zlink |

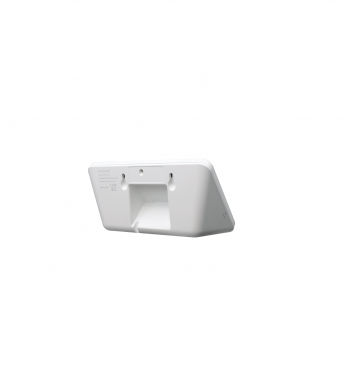

| Installation | Wall-mount Desktop Installation |
| Certifications | ISO14001, ISO9001, CE, FCC, Equivalent to RoHS |
| Order ID | TA01-FL22H-43 |
