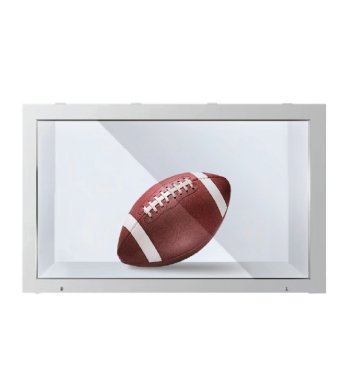

Transparent Cabinet Digital Signage
Model |
Name |
DG03-A7T43 |
Mainboard |
OS | Android 11.0 |
| CPU | Quad Core RK3566 1.8GHz | |
| RAM | 2GB | |
| ROM | 16GB | |
Display |
Size | 43-inch |
| Resolution | 1920 × 1080 | |
| Contrast | 4000:1 | |
| Response Time | 8ms | |
| Response Time | 60Hz | |
| View Angle | 178°(H)/178°(V) | |
| Brightness | 500cd/m² (typ.) | |
| Brightness Uniformity | 75% | |
| Display Colors | 8 bit(16.7M) | |
| Life | >30000 hours | |
Interface |
RJ45 | 1 |
| Earphone | 1 | |
| USB2.0 | 2 | |
Support Format |
Video | MP4/AVI/DIVE/XVID/VOB/DAT/MPG/RM |
| Audio | MP3/WMA/OGG | |
| Image | JPG/MMP/GIP/PNG | |
Network |
Wi-Fi | Support |
| LAN | RJ45 | |
Power |
Power Input | AC 100~240V @50/60Hz |
| Max Consumption | ≤100W | |
| Standby Consumption | ≤1W | |
Physical Parameters |
Product Color | White |
| Product Dimensions | 1069×657×300mm(L×H×W) | |
| Package Dimensions | 1165×802×405mm(L×H×W) | |
| Net Weight | 40kg | |
| Gross Weight | 45kg | |
General Environment |
Operating Temperature | 0°C to 50°C |
| Storage Temperature | -20°C to 60°C | |
| Operating Humidity | 20% to 90% RH(Non-condensing) | |
| Storage Humidity | 5% to 90% RH (Non-condensing) |
