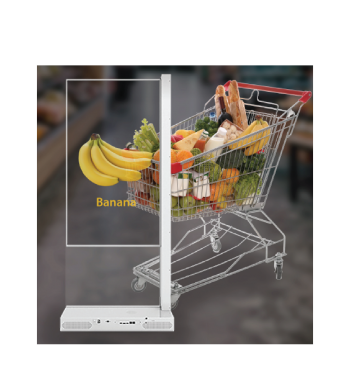

O-LED Transparent Screen
Model |
Name |
DG03-A7T55 |
Mainboard |
OS | Android 11.0 |
| Chipset | RK3566 | |
| CPU | Quad Core Cortex-A55 1.8GHz | |
| RAM | 4GB | |
| ROM | 32GB | |
Display |
Size | 55-inch |
| Backlight | O-LED | |
| Aspect Ratio | 16:9 | |
| Resolution | 1080×1920 | |
| Contrast | 100000:1 | |
| Response Time | 1ms (G TO G) | |
| View Angle | 178° (H)/178° (V) | |
| Brightness | 200-600cd/m² | |
| Display Colors | 1.07B (10bit) | |
| Life | 8Ω 5W | |
Speaker |
Power | 8Ω 5W |
Interface |
RS232 IN | 1 |
| RS232 OUT | 1 | |
| USB | 1 | |
| HDMI IN | 1 | |
| DP | 1 | |
Support Format |
Video | H.265/H.264/VP8/MAV/WMV/AVS/H.263/MPEG4 |
| Audio | MP3/WMA/WAV/APE/FLAC/AAC/OGG/M4A/3GPP | |
| Image | JPG/BMP/PNG | |
Network |
Wi-Fi | 2.4GHz |
| LAN | RJ45 | |
| Bluetooth | Bluetooth 4.2 | |
Power |
Power Input | AC 100~240V |
| Max Consumption | 180W | |
Physical Parameters |
Material | Aluminum profile+tempered glass+sheet metal |
| Product Dimensions | 1762×772×327mm (L×H×W) | |
General Environment |
Operating Temperature | 0°C to 40°C |
| Operating Humidity | 20% to 80% RH (Non-condensing) | |
