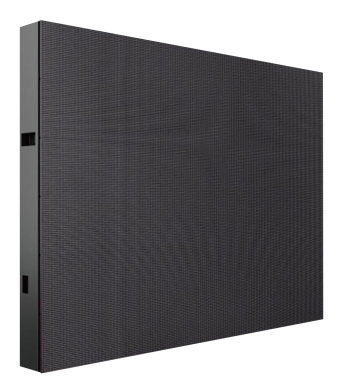

DGLED-Indoor

Full-Color LED Display

The Indoor LED display possesses the characteristics of high brightness, durability, waterproofness, energy efficiency, and environmental friendliness. It plays a crucial role in the domains of outdoor media, advertising, cultural transmission, and entertainment while contributing significantly to urban construction and sports events.

  • Displays position prompt of signal cable connection, convenient for quick connection of display unit and troubleshooting
  • Acquires network statuses of receiving cards to help handle network communication problems
  • Network loop backup improves product stability
  • Dual-program backup enables the backup program of receiving cards for upgrade and restoration when exceptionccurs during program upgrading
  • Loads parameters from the screen
  • Low gray scale multiplication technology ensures more exquisite images

Model

DG01-A1P15

DG01-A1P18

DG01-A1P25

DG01-A1P30

Cabinet Parameters
Modules Component 3*2 3*2 3*2 5*5
Dimensions (WxHxD) 640*480*65mm 640*480*65mm 640*480*65mm 960*960*100mm
Resolution 426*313 344*258 256*128 320*320
Area 0.3072㎡ 0.3072㎡ 0.3072㎡ 0.9216㎡
Weight 8.6KG 8.6KG 8.6KG 18KG
Lamp Board Housing no housing no housing no housing no housing
Cabinet Material Die-cast aluminum Cabinet Material Cabinet Material Cabinet Material
Maintenance Method Front maintenance for all components Front maintenance for all components Front maintenance for all components Front maintenance for all components
Cabinet Flatness 0.1mm 0.1mm 0.1mm 0.1mm
Protection Level Front protection level IP5X Front protection level IP5X Front protection level IP5X Front protection level IP5X

Module parameters


Pixel pitch 1.5mm 1.8mm 2.5mm 3.0mm
Pixel Density 422,500Dots/㎡ 288,906Dots/㎡ 160,000Dots/㎡ 111,111Dots/㎡
Pixel Configuration 1R1G1B 1R1G1B 1R1G1B 1R1G1B
LED Encapsulation CEC (China Electronics) Encapsulation, with Chip-on-Board (COB) technology SMD1515 SMD2121 SMD2121
Size 320*160*14.7mm 320*160*14.7mm 320*160*14.7mm 192*192*14.7mm
Weight 0.43kg±0.01kg 0.43kg±0.01kg 0.43kg±0.01kg 0.33kg±0.01kg
Structural Features Integrated Lamp and Driver Soft Connection Soft Connection Soft Connection
Module Resolution 209*104 172*86 128*64 64*64
Input Voltage (DC) 4.2~4.5V 4.2~4.5V 4.2~4.5V 4.2~4.5V
Maximum Current ≤4.5A ≤4.5A ≤4A ≤4A
Signal Input Interface Type HUB75 (two sets of data) HUB75 (two sets of data) HUB75 (two sets of data) HUB75 (two sets of data)
Cascade Not Available for Cascade Not Available for Cascade Not Available for Cascade Not Available for Cascade
Module Power ≤40 ≤20.25W ≤18W ≤22W
Driving Mode Constant drive Constant Current Driving Constant Current Driving Constant Current Driving
Brightness ≥800cd/㎡ ≥800cd/㎡ ≥800cd/㎡ ≥800cd/㎡
Brightness Uniformity >0.95 >0.95 >0.95 >0.95
Horizontal Viewing Angle 160±10 degrees 160±10 degrees 160±10 degrees 140±10 degrees
Vertical Viewing Angle 120±10 degrees 140±10 degrees 140±10 degrees 130±10 degrees
Best Viewing Distance ≥1.53m ≥5.5m ≥7.5m ≥3m
Usage Environment Indoor Indoor Indoor Indoor
Service Life ≥100,000 Hours ≥100,000 Hours ≥100,000 Hours ≥100,000 Hours
Mean Time Between Failures (MTBF) ≤10% ≤10% ≤10% ≤10%
Continuous Out-of-Control Points 0 0 0 0
Discrete Out-of-Control Points <30PPM, 0 at the time of factory shipment <30PPM, 0 at the time of factory shipment <30PPM, 0 at the time of factory shipment <30PPM, 0 at the time of factory shipment
Operating Temperature Range -20°C-40°C -20°C-40°C -20°C-40°C -20°C-40°C
Operating Humidity Range 10%-65%RH (non-condensing) 10%-65%RH (non-condensing) 10%-65%RH (non-condensing) 10%-65%RH (non-condensing)
Module Flatness <0.2mm <0.2mm <0.2mm <0.2mm
