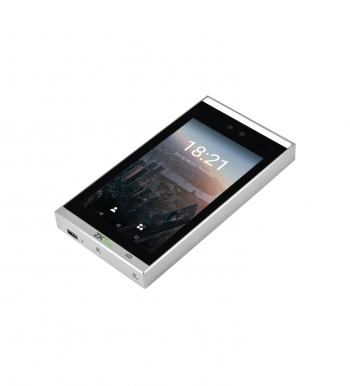

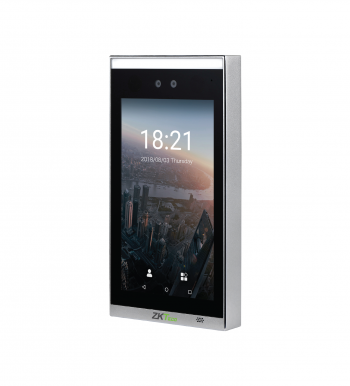

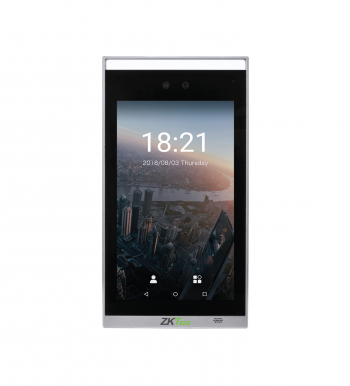

Indoor Facial Recognition Station with Slim and Exquisite design and 7-inch Display Features:
· Enhanced Visible Light Facial Recognition with Deep Learning built-in
· High performance processor boosted by ZKTeco
· Maximum 10,000 face templates capacity
· 7-inch touch LCD
· Fingerprint and ID / IC module optional
· Dual-camera for real-time face detection
· Recognition distance: 0.3 - 3 m
· Compatible with external RS485 and Wiegand reader
· TCP / IP, Wi-Fi and USB communication
· Compatible with ZKTeco and 3rd party barrier
· IP65 ingress protection rating for FaceDepot-7BL(WP)
| Hardware | |
| LCD | 7-inch touch screen (1280 x 720 pixel) |
| CPU | Quad-core A17 1.8GHz (ZKTeco boosted) |
| Memory | 2G RAM / 16G ROM |
| Camera | 2MP dual lens |
| Communication | TCP / IP, USB Host, Wi-Fi (optional) RS232 for external printer, RS485 for external reader Wiegand Input / Output |
| Accessory | Door lock, door sensor, alarm, exit button and auxiliary input |
| Audio | Loudspeaker |
| Ingress Protection Rating | IP65 for FaceDepot-7BL (WP) |
| Capacity | |
| User Capacity | 10,000 |
| Face Templates | 10,000 |
| Fingerprint Capacity | 10,000 (optional) |
| RFID | 10,000 (optional) |
| Log Capacity | 100,000 |
| Operating | |
| Operating Temperature | -10°C ~ 45°C |
| Voltage | 12V 3A |
| Operating Humidity | 10% ~ 90% |
| Supported Software | ZKBio CVSecurity |
