Multi-Functional Access Control
Advanced Biometric Technology
High Scalability
Flexible communication protocols

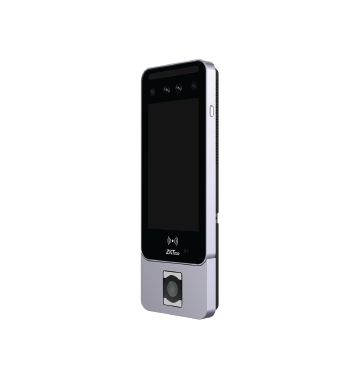

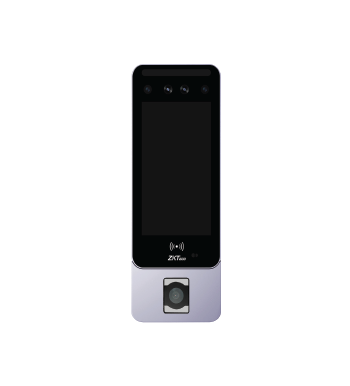

The Horus E2 from ZKTeco is an Android-based multi-biometrics terminal designed to streamline both time attendance and access control. Leveraging ZKTeco's cutting-edge technology, the Horus E2 supports a variety of authentication methods, including facial authentication, fingerprint scanning, multi-tech card authentication, and QR code scanning. These features meet the diverse needs of users across various environments. The device ensures reliable connectivity through dual-frequency Wi-Fi and 4G LTE, facilitating seamless network integration. The Horus E2 is compatible with Android 10 operating system, which simplifies the integration with third-party applications. Additionally, it includes an optional removable backup battery, enhancing its reliability and making it an ideal solution for temporary site management.
| Model | Horus E2 Horus E2-FP Horus E2-B Horus E2-QR |
| Display | 5" @ TFT Color Touch LED Screen (780*1280) |
| Camera | Dual Camera @ 2MP |
| Operation System | Android 10.0 |
| Hardware | CPU: Octa-core @ 2.0 GHz RAM: 2GB; ROM: 16GB Speaker: 7ohm @1.14W Sensitivity: -36 dB / Omni-directional / Signal-to-Noise Ratio: 60 dB / Impedance: 2.2KΩ Supplement Light: Yes |
| Authentication Method | Face / Card / Password (Virtual Keypad) / Fingerprint (Optional) / QR Code (Optional) |
| Fingerprint Template Capacity | Horus E2: N/A Horus E2-FP: 30,000 (1:N) Horus E2-B: N/A Horus E2-QR: N/A |
| Face Template Capacity | 20,000(1:N) |
| Card Capacity | 50,000(1:N) |
| User Capacity | 50,000 |
| Transaction Capacity | 200,000 |
| Max. User Password Length | 8 Digits |
| Biometric Authentication Speed | Horus E2: less than 1 sec (Facial Authentication) Horus E2-FP: less than 0.5 sec (Fingerprint); less than 1 sec (Facial Authentication) Horus E2-B: less than 1 sec (Facial Authentication) Horus E2-QR: less than 1 sec (Facial Authentication) |
| Touchless Biometric Recognition Distance | 30 cm to 100 cm (Facial Authentication) |
| False Acceptance Rate (FAR) % | Horus E2: FAR ≤ 0.01% (Visible Light Facial Authentication) Horus E2-FP: FAR ≤ 0.01% (Visible Light Facial Authentication); FAR≤ 0.0001% (Fingerprint ; ZKFingerprint V10.0; ZKFingerprint V13.0) Horus E2-B: FAR ≤ 0.01% (Visible Light Facial Authentication) Horus E2-QR: FAR ≤ 0.01% (Visible Light Facial Authentication) |
| False Rejection Rate (FRR) % | Horus E2: FRR ≤ 0.02% (Visible Light Facial Authentication) Horus E2-FP: FRR ≤ 0.02% ( Visible Light Facial Authentication); FRR≤ 0.01% (Fingerprint ) Horus E2-B: FRR ≤ 0.02% (Visible Light Facial Authentication) Horus E2-QR: FRR ≤ 0.02% ( Visible Light Facial Authentication) |
| Biometric Algorithm | Horus E2: ZKFace VX5622 Horus E2-FP: ZKFace VX5622; ZKFinger VX10.0 Horus E2-B: ZKFace VX5622 Horus E2-QR: ZKFace VX5622 |
| Card Type | ID Card@125 kHz & IC Card@13.56 MHz (Standard) |
| QR Code | Horus E2: / Horus E2-FP: / Horus E2-B: / Horus E2-QR: ZKBio Zexus Mobile App, PDF417 scanning in third-party development projects |

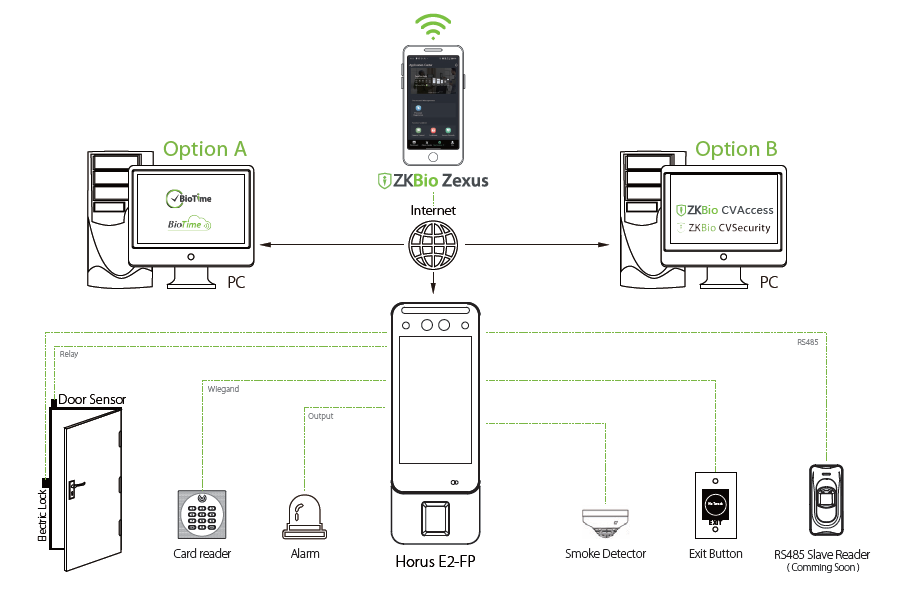

| Communication | TCP/IP*1; Wi-Fi (IEEE 802.11 ac/a/b/g/n) @ 2.4 GHz & 5G GHz; Bluetooth: BLE 4.1 Wiegand (Input & Output)*1; RS485: ZKTeco RS485 *1; Aux Inputs *1; Electric Lock*1; Door Sensor*1; Exit Button*1; Alarm*1 |
| Mobile Communication | Support 4G, Support GSM/WCDMA / TDSCDMA / LTE / TDD GSM4, W (B1 / 2 / 4 / 5 / 8) ; TD (34 / 39) PRX (1 / 2 / 3 / 4 / 5 / 7 / 8 / 12 / 17 / 20 / 28AB / 34 / 38 / 39 /40 / 41) DRX (1 / 2 / 3 / 4 / 5 / 7 / 8 / 12 / 17 / 20 / 38 / 39 / 40 / 41) |
| Standard Functions | ADMS, Photo Capture, Event Photo Capture, Holidays, Anti-Passback, Schedule Bell, Record Query, Tamper Switch Alarm, Multiple Authentication Methods, AC Push and TA Push Protocol Switch, T9 Keyboard (Input) |
| Access Control Interface | RS485 ( RS485 Card Reader / Biometric Reader) |
| Power Supply | Horus E2: DC 12V 3A Horus E2-FP: DC 12V 3A Horus E2-B: DC 12V 3A Backup Battery Horus E2-QR: DC 12V 3A |
| Backup Battery | Horus E2: / Horus E2-FP: / Horus E2-B: 2000mAh (Lithium Battery) Horus E2-QR: / |
| Operating Temperature | -10°C to 45°C |
| Operating Humidity | 0% to 80% RH (Non-condensing) |
| Dimensions | Horus E2: 171.5mm * 82mm * 19.5mm (L*W*H) Horus E2-FP, Horus E2-B, Horus E2-QR: 216mm * 82mm * 19.5mm (L*W*H) |
| Gross Weight | Horus E2: 1.0 Kg Horus E2-FP, Horus E2-B, Horus E2-QR: 1.06 Kg |
| Net Weight | Horus E2: 0.39 Kg Horus E2-FP, Horus E2-B, Horus E2-QR: 0.46 Kg |
| Supported Software | Software: ZKBio CVSecurity / ZKBio CVAccess / BioTime / BioTime Cloud Mobile Application: ZKBio Zexus / BioTime / BioTime Cloud |
| Installation | Wall-mount (Compatible with Asian Gang-box / Single Gang-Box) |
| Certifications | ISO14001, ISO9001, CE, FCC, RoHS |
';
