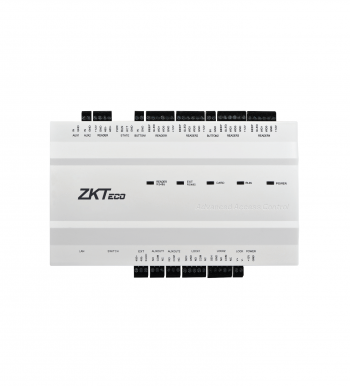

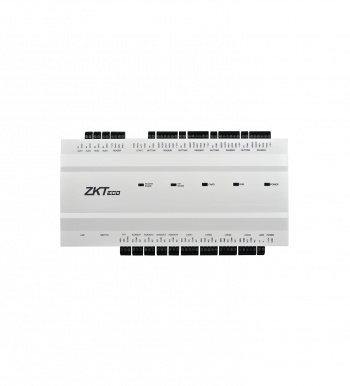

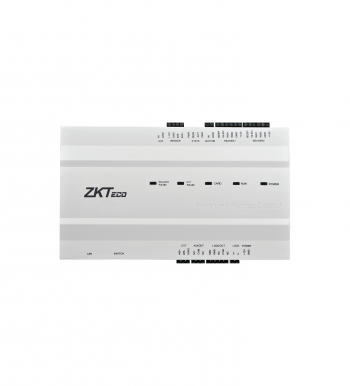

InBio Pro Plus Series is a project oriented, high-end product line with distinctive features, including embedded facial and fingerprint authentication, as well as advanced access control functions. Equipped with TCP/IP, it enables robust remote management and connectivity over local (LAN) and wide area networks (WAN), enhancing deployment flexibility and scalability.
Comprising the InBio160 Pro Plus, InBio260 Pro Plus, and InBio460 Pro Plus models, the system supports up to 3,000 face templates and 20,000 fingerprint templates, a maximum of 100,000 card users, and 100,000 dynamic QR code capacity.
| Model Name | InBio160 Pro Plus InBio260 Pro Plus InBio460 Pro Plus |
| Operation System | Linux OS |
| Hardware | CPU: Single Core@1.0GHz RAM: 128MB; ROM: 256MB; |
| Authentication Method | Card / Password / Fingerprint / Face / QR Code |
| Access Point Capacity | InBio160 Pro Plus: 1 Access Point InBio260 Pro Plus: 2 Access Points InBio460 Pro Plus: 4 Access Points |
| Reader Capacity | InBio160 Pro Plus: 2 * RS-485 Readers (ZKTecoRS-485 / OSDP), 2 * 26 / 34 / 66 bit Wiegand Readers InBio260 Pro Plus: 4 * RS-485 Readers (ZKTecoRS-485 / OSDP), 4 * 26 / 34 / 66-bit Wiegand Readers InBio460 Pro Plus: 8 * RS-485 Readers (ZKTecoRS-485 / OSDP), 4 * 26 / 34 / 66-bit Wiegand Readers |
| IO Expansion Board Capacity | 8pcs EX0808 (RS-485 connection) |
| User Capacity | 100,000 |
| Card Capacity | 100,000 (1:N) (Standard) |
| Fingerprint Template Capacity | 20,000 (1:N) (Standard) |
| Face Template Capacity | 3,000 (1:N) (Standard) |
| QR Code Capacity | 100,000 (Static QR Code / Dynamic QR Code) |
| Transaction Capacity | 500,000 (Standard) |
| Biometric Algorithm | ZKFingerprint V10.0 / V13.0(Default) ZKLiveface 3.5 / 4 |
| Biometric Authentication Speed | |
| False Acceptance Rate (FAR) % | FAR ≤ 0.0001% @ Fingerprint FAR ≤ 0.01% @ Facial |
| False Rejection Rate (FRR) % | FRR ≤ 0.01% @ Fingerprint FRR ≤ 0.02% @ Facial |
| Number of Inputs | InBio160 Pro Plus: 1 * Exit Button, 1 * Door Status, 1 * AUX Inputs or 64 (with 8pcs of EX0808 IO expansion board) InBio260 Pro Plus: 2 * Exit Button, 2 * Door Status, 2 * AUX Inputs or 64 (with 8pcs of EX0808 IO expansion board) InBio460 Pro Plus: 4 * Exit Button, 4 * Door Status, 4 * AUX Inputs or 64 (with 8pcs of EX0808 IO expansion board) |
| Number of Outputs | InBio160 Pro Plus: 1 * Form C Relay for Lock, 1* Form C Relay for Aux Output or 64 (with 8pcs of EX0808 IO expansion board) InBio260 Pro Plus: 2 * Form C Relay for Lock, 2 * Form C Relay for Aux Output or 64 (with 8pcs of EX0808 IO expansion board) InBio460 Pro Plus: 4 * Form C Relay for Lock, 4 * Form C Relay for Aux Output or 64 (with 8pcs of EX0808 IO expansion board) |
| Max. Card Length | Supports up to 66 bits Card Length |
| QR Code | PDF417, Data Matrix, MicroPDF417, Aztec scanning in third-party development projects. Dynamic QR codes on the ZKBio CVSecurity mobile application |
| Communication | InBio160 Pro Plus: TCP / IP * 1; RS-485: ZKTeco RS-485 / OSDP (Optional) * 1; Wiegand (Input) * 2; USB: Type A (USB Drive Only) * 1; Aux Inputs * 1, Aux Outputs * 1; Electric Lock * 1, Door Sensor * 1, Exit Button * 1, Alarm *1 InBio260 Pro Plus: TCP / IP * 1; RS-485: ZKTeco RS-485 / OSDP (Optional) * 1; Wiegand (Input) * 4; USB: Type A (USB Drive Only) * 1; Aux Inputs * 2, Aux Outputs * 2; Electric Lock * 2, Door Sensor * 2, Exit Button * 2, Alarm * 2 InBio460 Pro Plus: TCP / IP * 1; RS-485: ZKTeco RS-485 / OSDP (Optional) * 1; Wiegand (Input) * 4; USB: Type A (USB Drive Only) * 1; Aux Inputs * 4, Aux Outputs * 4 ; Electric Lock * 4, Door Sensor * 4, Exit Button * 4, Alarm * 4 |
| Standard Functions | Webserver, Upto 14-digit User ID, Access Levels, Access Groups, Holidays, Anti-passback, Linkage, Global Linkage, Multiple Verification Methods |
| Access Control Interface | Wiegand (Card Reader), RS-485(RS-485 Card Reader / Fingerprint Reader / Facial Recognition Reader / QR code Reader) |
| Power Supply | 9.6V- 14.4V DC |
| Operating Temperature | 0℃ to 45℃ |
| Operating Humidity | 20% to 80% RH (Non-condensing) |
| Dimensions (L * W * H) | InBio160 Pro Plus: 185.12 mm * 106 mm * 36.07 mm InBio260 Pro Plus: 185.12 mm * 106 mm * 36.07 mm InBio460 Pro Plus: 226 mm * 106 mm * 36.07mm |
| Gross Weight | InBio160 Pro Plus: 1.004 Kg InBio260 Pro Plus: 1.037 Kg InBio460 Pro Plus: 1.098 Kg |
| Net Weight | InBio160 Pro Plus: 0.390 Kg InBio260 Pro Plus: 0.422 Kg InBio460 Pro Plus: 0.494 Kg |
| Supported Software | ZKBio CVSecurity |
| Installation | Supported DIN Rail mount / Wall-mount / Metal Enclosure (Optional) |

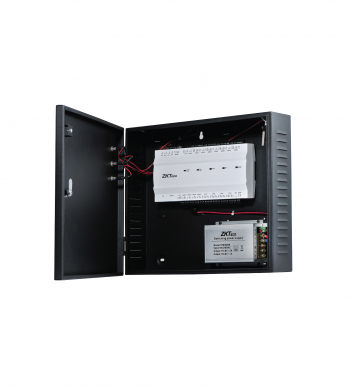

| Enclosure (Optional) | InBio160 Pro Plus: Size: 350 mm * 90 mm *300 mm (L*W*H); Material: SPCC steel; Power Supply Unit: input 110V~240V AC,output 12V 2A;1A DC; Backup Battery: Space reserved [Backup Battery Recommended size: (L*W*H):151 x 94 x 65 mm)]; Gross Weight: 3.57 Kg InBio260 Pro Plus: Size: 350 mm * 90 mm * 300 mm (L*W*H); Material: SPCC steel; Power Supply Unit: input 110V~240V AC,output 12V 4A+1A DC; Backup Battery: Space reserved [Backup Battery Recommended size: 151 x 94 x 65 mm(L*W*H)]; Gross Weight: 3.57 Kg InBio460 Pro Plus: Size: 350 mm * 90 mm * 300 mm (L*W*H); Material: SPCC steel; Power Supply Unit: input 110V~240V AC,output 12V 4A+1A DC; Backup Battery: Space reserved [Backup Battery Recommended size:151 x 94 x 65 mm(L*W*H)]; Gross Weight: 3.77 Kg |
| Certifications | ISO14001, ISO9001, CE, FCC, RoHS |
| Factory ID | InBio160 Pro Plus: AC02-CB11H-U10 InBio260 Pro Plus: AC02-CB12H-U10 InBio460 Pro Plus: AC02-CB14H-U10 |
