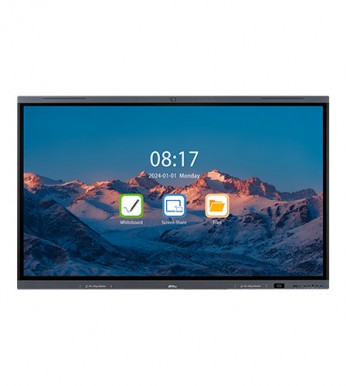

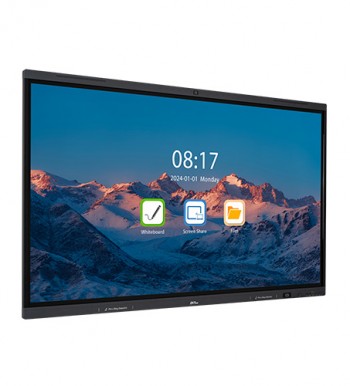

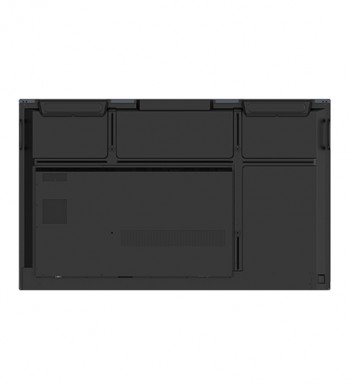

4K Smart Interactive Whiteboard
ZKTeco’s 4K digital interactive whiteboard aims to promote the sharing of inspirational knowledge business and education. The integrated meeting solution of SC02-I565/75/86A product offer screen sharing, whiteboard writing and remote video conference, which strengthen collaboration.
| Model | SC02-I565A SC02-I575A SC02-I586A |
Screen |
|
| Screen Size | SC02-I565A: 65-inch SC02-I575A: 75-inch SC02-I586A: 86-inch |
| Screen Type | SC02-I565A: VA SC02-I575A: ADS SC02-I586A: IPS |
| Backlight | D-LED |
| Backlight Life | 50,000 hours (min.) (typ.) |
| Resolution | 3840 × 2160 (pixels) |
| Brightness | SC02-I565A: 350cd/m² (typ.) SC02-I575A: 400cd/m² (typ.) SC02-I586A: 400cd/m² (typ.) |
| Contrast Ratio | SC02-I565A: 4000:1 (typ.) SC02-I565A: 5000:1 (typ.) SC02-I586A: 5000:1 (typ.) |
| Response Time | 8ms (typ.) |
| Frequency | 60Hz |
| Aspect Ratio | 16:09 |
| Viewing Angle | 178°(H) / 178°(V) |
| Display Color | 1.07B(8bit+FRC) |
| Bonding Technology | The gap between tempered glass and screen is close to 0 |
Touch |
|
| Touch Technology | High Precision IR |
| Touch Points | Up to 50 |
| Touch Response Time | ≥2ms |
| Touch Accuracy | Center 90% touch area: 1mm |
| Anti-Glare | High transparent+Smooth+Anti-glare |
| Glass Hardness | 9H (Pencil Hardness) ; 7(Mohs Hardness) Tempered Glass |
| Writing Height | ≤ 1mm |
System |
|
| CPU | Quad core A73+Quad core A53 |
| GPU | MaliG52 MP8 |
| Memory (RAM) | 8GB (up to 16GB) |
| Storage (ROM) | 128GB (up to 256GB) |
| Operating System | Android 13 (standard)/ Windows 11 (Optional) |
Connectivity |
|
| Front Port | USB 3.0*2; Type-C(65W)*1; Touch*1; HDMI IN: 1 |
| Bottom Port | USB 2.0*1; DP IN*1; Touch*1; RS232*1; LAN*2; SPDIF*1 |
| Side Port | AUDIO IN*1; AUDIO OUT*1; Type-C OUT*1; USB 3.0*2; Touch * 1; HDMI IN: 3; HDMI OUT*1; Type-C(65W)*1; OPS slot (for slot-in PC)*1 |
Built-in peripherals |
|
| WiFi+Bluetooth | WiFi 6: 802.11 ax/b/g/n/ac BT 5.2: 2.1+EDR/4.2/5.2 |
| NFC | ISO / IEC 14443 Type A & Type B cards |
| Camera | Pixel: 48 MP POV: FOV Diagonal 106° Face Tracking: Support Sound localization: Support |
| Microphone | Array Quantity: 8 microphones array(up to 12m) Pickup Range: Support 3D Noise Reduction: Support AEC & AGC: Support |
| Speaker | 2x8W + 2x18W |
| Operating Power | 100 V ~ 240 V/AC, 50/60 Hz |
| Standby power consumption | < 0.5W |
| Power Consumption (typ.) (100% Brightness) | SC02-I565A: 200W SC02-I575A: 300W SC02-I586A: 550W |
Physical |
|
| Dimensions (W × H × D) | SC02-I565A:1488 x 86 x 915 mm SC02-I575A: 1709 x 86 x 1039 mm SC02-I586A: 1957 x 98.5 x 1179 mm |
| Package Dimensions (L × W × H) | SC02-I565A: 1628 x 208 x 1014 mm SC02-I575A: 1863 x 225 x 1163 mm SC02-I586A: 2110 x 225 x 1304 mm |
| Net Weight (kg) | SC02-I565A: 40 kg SC02-I575A: 52.5 kg SC02-I586A: 64 kg |
| Weight with Packaging (kg) | SC02-I565A: 52 kg SC02-I575A: 64 kg SC02-I586A: 84 kg |
| Case Material | Aluminium Alloy and Sheet Metal |
| Color | Blue Grey |
Environment |
|
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | 10°C to 60°C |
| Operating Humidity | 20% to 80% RH (Non-condensing) |
| Storage Humidity | 10% to 60% RH (Non-condensing) |
Accessories |
|
| Cables | Power Cable*1, USB Cable*1, HDMI Cable*1 |
| Remote Controller | 1 |
| Wall mount | 1 |
| Stylus Pen | 2 |
| Eraser | 1 |
Peripheral Accessories(Optional) |
|
| Movable bracket | YES |
| OPS | YES |
| Wireless Dongle | YES |
| Fonts Library | Bottom Port |
