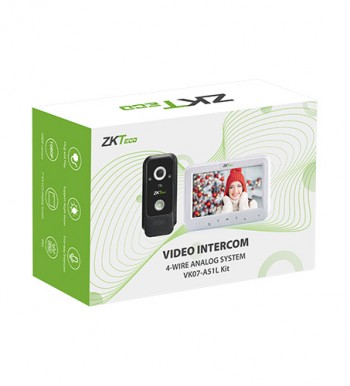

ZKTeco’s VK07-A51L Kit is a cost effective video intercom kit. The outdoor station features a rugged aluminium alloy construction with IP65 water and dust resistance for operation in all weather and outdoor conditions. Its 2MP camera offers a wide 120° viewing angle with night vision capability up to 3 metres.
ZKTeco’s VK07-A51L Kit is a cost effective video intercom kit. The outdoor station features a rugged aluminium alloy construction with IP65 water and dust resistance for operation in all weather and outdoor conditions. Its 2MP camera offers a wide 120° viewing angle with night vision capability up to 3 metres.
The indoor monitor features a 7”IPS LCD display with comprehensive recording features. Itsupports both manual and automatic video and photo recording in AVI and JPG formats, with dual lock control and loop recording mode. The system offers 60-second system auto surveillance sessions and 90-second intercom calls, with expandable storage up to 128GB via TF card. Recordings can be reviewed directly on the monitor or transferred to a computer for viewing.

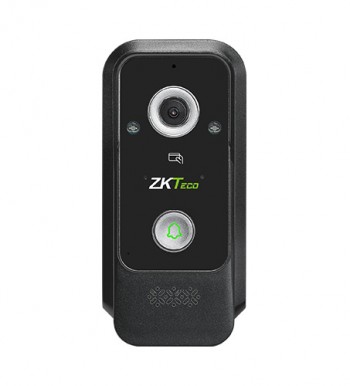

Outdoor station |
|
| Operation System | Linux |
| Video Compression | H.264 |
| Camera | 1080P |
| Camera Viewing Angle | 120° |
| Visible Range (Night) | 0.2 ~ 3 m |
| Power Supply | Power supply by indoor monitor |
| Motion Detection | Support |
| Audio Input | Microphone * 1 (Omni-directional) |
| Audio Output | Built-in Speaker |
| Bi-directional Talk | Support |
| Authentication Method | IC Card / NFC |
| Card Capacity | 1,000 (1:N) (Standard) |
| Ingress Protection Rating | IP65 |
| Operating Temperature | –30 °C to +60 °C |
| Operating Humidity | 10% to 90% RH (Non-condensing) |
| Casing Material | Aluminium Alloy + ABS plastic |
| Installation Method | Flush mount (with rain cover) on flat surface |
| Dimension (W*H*D) | 125 * 52 * 45 (mm) |

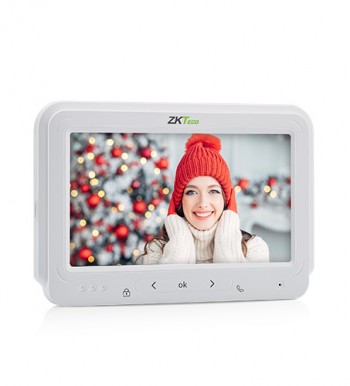

Indoor monitor |
|
|
Operation System |
Linux |
|
Resolution |
1024 * 600 |
|
Display Screen |
7 inch IPS LCD screen |
|
Power supply |
DC 15V 1.2A |
|
Standby Power |
≤ 3W |
|
Operating Power |
≤ 10W |
|
Use Distance |
≤ 100M |
|
Installation Method |
Wall mount |
|
Material |
ABS plastic |
|
Dimension (W*H*D) |
195 * 132 * 20 (mm) |
|
Intercom Call |
Support (duration: 90 seconds) |
|
Doorbell tone |
10 Tunes available |
|
Manual Photo and Video Recording |
Support |
|
Automatic Video Recording |
Support |
|
Dual Lock Control |
Support (Optional) |
|
Video Recording Duration |
30 seconds (manual) ; 60 seconds (system auto recording) |
|
Photo and Video Storage Format
|
JPG (photo) / AVI (video) / loop overwrite |
|
Recorded Files Playback |
Playback on indoor monitor / export and view on computer |
