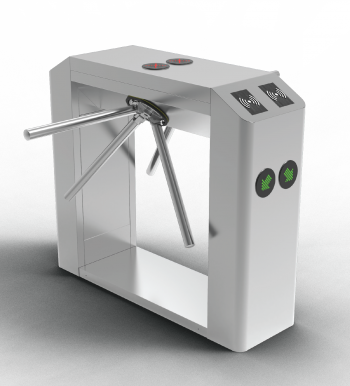

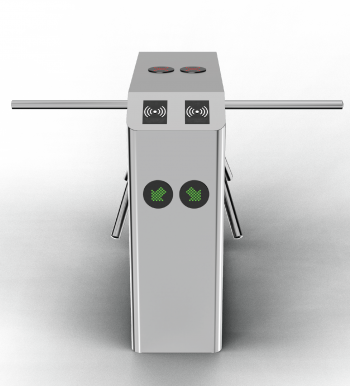

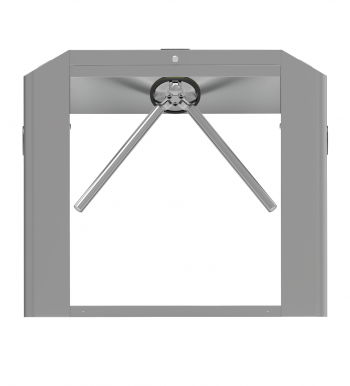

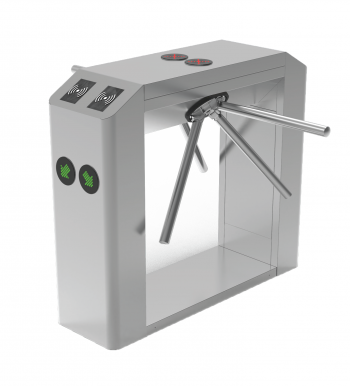

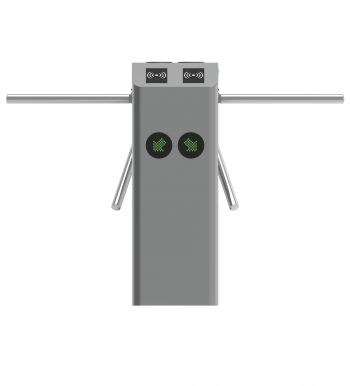

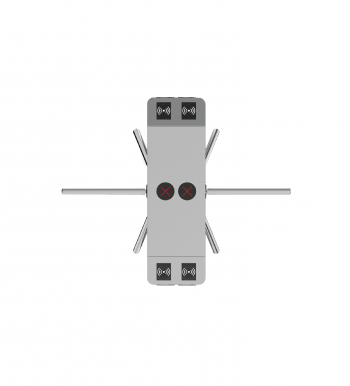

The TS1200 Pro series delivers robust access control through its SUS304 stainless steel construction, engineered for demanding environments from corporate campuses to entertainment venues. This dual-lane, bi-directional tripod turnstile processes up to 25 passengers per minute via RFID or 20 per minute through fingerprint authentication, optimizing throughput in high-traffic locations, the bi-directional tripod turnstile supports wireless remote control to execute the drop arm function efficiently for free passage.
| Model Name | TS1200 Pro Series |
| Visual Indicator | LED Indicator Steady green = Open Steady red = Close |
| Audio Indicator | Internal buzzer |
| Lane Type | Dual lane (support bi-directional) |
| Lane Width | 550mm |
| Barrier Movement Type | Rotating (tripod) |
| Tripod Length | 500mm |
| Footprint (L*W) | 605 × 252mm |
| Lid Material | SUS304 stainless steel |
| Lid Options | Streamlined (with mount options) |
| Lid Options Authentication Methods | Fingerprint; RFID |
| Chassis Material | SUS304 stainless steel (T=1.2mm) |
| Chassis Color | Silver / gray |
| Barrier Material | SUS304 stainless steel |
| Motherboard Function | Tripod (drop arm) duration; access mode configuration |
| Motherboard Communication | Fire alarm port (relay) *1 ; RS485 port *1 |
| Controller | C3-200 Plus (recommended); Inbio 260 Pro Plus or third-party controller subject to turnstile chassis space |
| Credential Options | Under Mount RFID Reader:ProID 10/ KR series Under Mount Fingerprint Reader: FR200 / FR1500 |
| Flow Rate | RFID: 25 passengers per minute; Fingerprint: 20 passengers per minute |
| Accessibility | Adult; Children (with care); Disability (with care) |
| Power Supply | 110V / 220V AC ±10% 50/60Hz; DC 12V |
| Power Rating | 10VA (Standby); 40VA (Operation) |
| Fire Signal | Input for voltage free contact |
| Noise Level | Less than 60dB |
| MTTR | Less than 60 minutes |
| MCBF | 2 million |
| Weight | Gross weight: 85kg Net weight: 65kg |
| Dimensions ( L*W*H ) | 1374 × 606 × 992mm |
| Dimensions with Packing ( L*W*H ) | 470 × 750 × 1100mm |
| Operating Temperature | -20°C to 70°C |
| Operating Humidity | 0% to 80% RH (non-condensing) |
| Certifications | CE, FCC |
| Ingress Protection Rating | Tested to IPX4-level water resistance (self-lab test result) |
| Supported Software | ZKBio CVAccess / ZKBio CVSecurity (expands functionality for access control) |
| Safety Levels | Auto-locking tripod upon authenticaton failure; drop arm during power off or power outage |
| Security Features | Anti-tailgating |
| Product Delivery | Pre-assembled |
| Application Environment | Indoor / outdoor (if sheltered) |
| Site Preparation | Flat level finished floor (base plate in options for unfinished floor) |
| Security Level | Medium |
| Emergency Mode | Support (drop arm) |
| Packing Material | Wooden box (standard) |
